LINK BOXE

Our Products

LINK BOXE

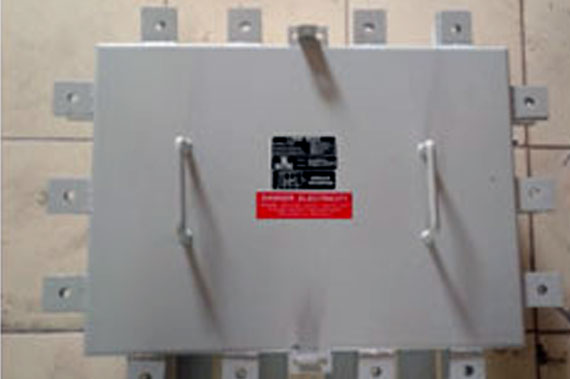

We manufacture and supply Single Phase Link Boxes and 3 Phase Link Boxes with SVL and without SVL. Our Products are CPRI Type tested for IP Rating and Short Circuit Current Ratings. We use SS Material for Link Boxes and High quality Surge Voltage Limiter for Earthing Protection to Cable System.

Features of Link Box/ Sheath Protection Box/ Sheath Insulation Box

  • Limits excess voltage induced on cable sheath
  • Limits voltage build-up on the sheath
  • Link box optimizes loss management in the cable shield on cables from lightning, fault currents & switching operations
  • Eliminate or reduce the circulating sheath currents
  • Improves current carrying capacity and human protection

Specification:

Suitable for 66KV/110kV/ 132KV /220kV/ 400kV XLPE U.G CABLES

Types of link box:

  • Single phase Link Box with SVL
  • Single phase Link Box without SVL
  • Three phase Link Box with SVL
  • Three phase Link Box without SVL

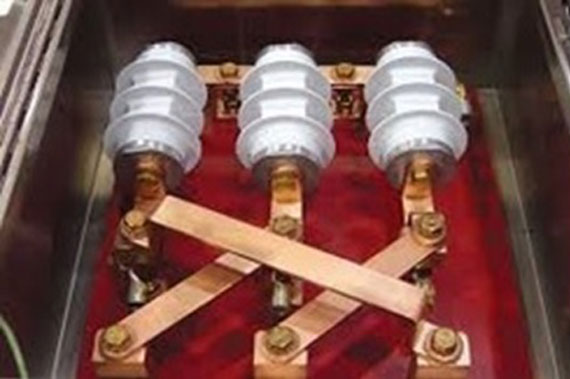

  • Three phase Cross Bonding Link Box
